IT6000E series - weight indicators

Weight indicator for demanding weighing and batching applications

With the IT6000E, SysTec offers a W&M approved, versatile weight indicator. The robust stainless steel housing allows the use in harsh industrial environments.

Standard application programs for all typical weighing and batching tasks in various sectors of industry are available. Customer-specific software modifications can be implemented fast and securely by SysTec or by manufacturer of scale using the RTC WIN programming environment.

The modular hardware concept offers a wide range of configuration options with digital, serial, analog and fieldbus interfaces.

The weight indicators are available in a wall-mount/desk-top housing or as panel-mount version for installation in a control cabinet.

For hazardous areas, SysTec offers the IT6000E Ex2/22 unit, also a touch panel version is available: IT6000ET.

The weight indicator is ideal for:

  • Filling systems for solid and liquid material
  • Shipping and receiving scales (bulkweighers)
  • Checkweighers
  • Check scales for statistical quality control (SQC)
  • Truck scales and axle weighers
  • Mobile scales
  • Scales for incoming goods and shipping
  • Counting scales



IT6000E weight indicator

IT6000E weight indicator

Weight indicator / weighing terminal as wall/desk version

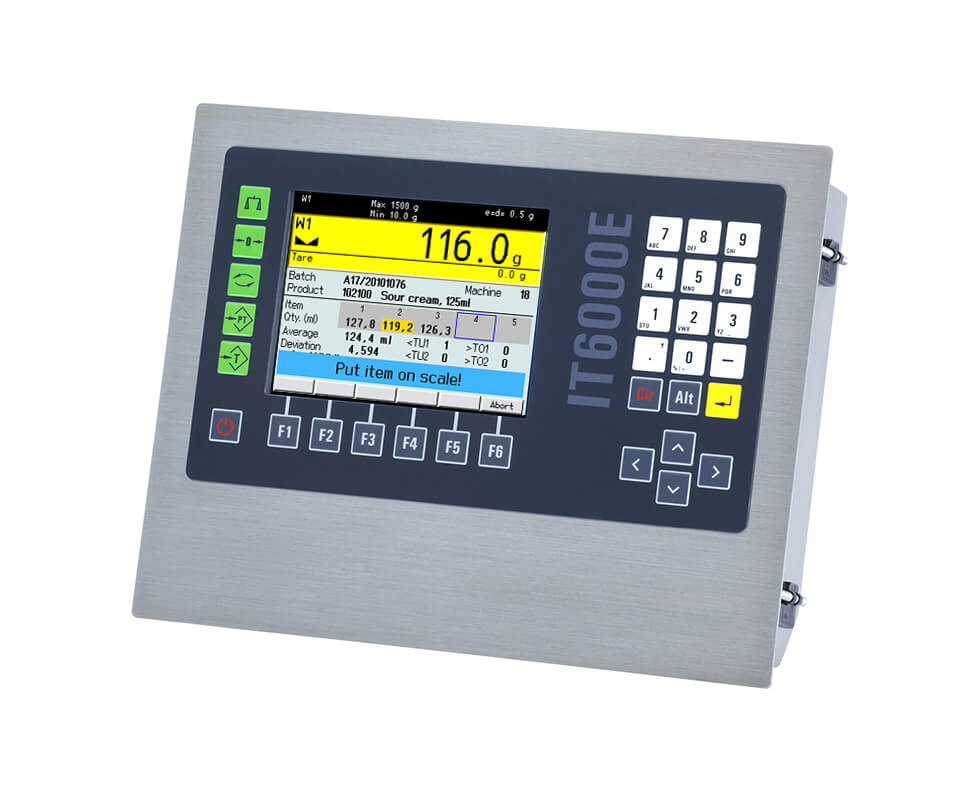

IT6000E weight indicator

IT6000E weight indicator

Weight indicator / weighing terminal as panel-mount version

  • Ease of operation: simple operator prompting, bright TFT color display 5.7" with wide viewing angle and large weight display, numeric keypad
  • W&M approved use as non-automatic or automatic scale (approved in the EU, USA, Canada, and others)
  • Universal use: a wide range of standard programs for a variety of weighing applications
  • Customer-specific modifications: The IT6000E weighing indicator is freely programmable
  • Rugged: stainless steel housing (ingress protection  IT6000E: IP69K; IT6000E Ex2/22 and IT6000ET: IP65)
  • Hazardous area: for installations in hazardous area the IT6000E Ex2/22 version is available
  • Various designs: for wall-mount/desk-top and panel-mount installation
  • Variety of interface options: 2 internal and up to 6 external scale interfaces, connection for PC networks and printers
  • High operational security: power-fail safe storage of data, password protection, battery-backed realtime clock, remote diagnosis possible over internet
  • One or two internal scale interfaces, selectable update rate of up to 800 measurements/s
  • High EMC interference immunity of at least 10 V/m
  • W&M approved resolution of 6000 d at a max. of 80 % preload
  • Use as multiple-range scale (e.g. 3 x 3000 d) or as multi-interval scale
  • W&M approved weight storage with a capacity of 120,000 weighings
  • Options: Connection of 2 scales via DUAL-ADM, connection of digital scales, external scale interface with ADC-Box over RS485, max. cable length: 500 m

The modular design of the electronics enables a variety of device configurations:

  • Wall/desk or panel-mount housings
  • Choice of DC or AC supply
  • Connection for analog or digital scale platforms
  • 10/100 Mbps Ethernet interface with integrated web server, WLAN as option
  • Integrated USB 2.0 host interface for printer, scanner and USB device
  • Up to 2 serial interfaces (selectable RS232, RS485, RS422, 20mA) to connect remote displays, label printers, and other peripheral devices
  • Variable I/O concept with up to 64 digital inputs/outputs
  • Analog inputs/outputs, and others



BAG  - filling controller for bags



BIGBAG – filling controller for big bags



BASIC/COUNT – weigh/count application

BATCH – as recipe batching controller / weighing terminal

BELT - as belt weigher controller

BULK – controller for bulk totalizer and throughput scales

CHECK – for check scales

FILL – filling controller for liquids

LOSS IN WEIGHT – controller for constant rate feeders

ONLINE – weighing terminal in the PC network

SQC - for statistical quality control

TRUCK/ONLINE – for truck scales

Standard programs can be adapted to specific customer requirements. New programs can be designed in a simple way on a PC with the RTC WIN  programming environment.

Directives

IT6000EIT6000E Ex2/22*IT6000ET
2014/30/EU2014/30/EU2014/30/EU
2014/31/EU2014/31/EU2014/31/EU
2014/32/EU2014/32/EU2014/32/EU
-2014/34/EU-
2014/35/EU2014/35/EU2014/35/EU

Standards

IT6000EIT6000E Ex2/22*IT6000ET
EN 45501EN 45501EN 45501
OIML R 76-1OIML R 76-1OIML R 76-1
EN 61000-6-2EN 61000-6-2EN 61000-6-2
EN 61000-6-3EN 61000-6-3EN 61000-6-3
NAMUR NE21NAMUR NE21NAMUR NE21
EN 62368-1EN 62368-1EN 62368-1
OIML R 51OIML R 51-
OIML R 61OIML R 61-
OIML R 107OIML R 107-
-EN 60079-0-
-EN 60079-7-
-EN 60079-11-
-EN 60079-31-
CE approval SysTec weight indicator

EC type examination certificate

IT6000EIT6000E Ex2/22*IT6000ET
as NAWIas NAWIas NAWI
as AGFIas AGFIas AGFI
checkweighercheckweigher-
automatic catchweighing instrumentautomatic catchweighing instrument-
weigh labelerweigh labeler-
weigh-price labelerweigh-price labeler-
discontinuous totalizerdiscontinuous totalizer-
NTEP approval SysTec weight indicator

NTEP type approval

as indicating element
IT6000EIT6000E Ex2/22*IT6000ET
-
ETL certified SysTec weight indicator

ETL certified

in compliance with UL 62368-1 and CSA C22.2 No. 62368-1
IT6000EIT6000E Ex2/22*IT6000ET
-
EMI approval SysTec weight indicator

EMI

in compliance with FCC part 15
IT6000EIT6000E Ex2/22*IT6000ET
-

Measurement Canada: type approval

as indicating element
IT6000EIT6000E Ex2/22*IT6000ET
-
Russia: approval as indicating instrument

Russia:

type approval as indicating instrument
IT6000EIT6000E Ex2/22*IT6000ET
-
ATEX approval for Ex zones SysTec weight indicator
IT6000EIT6000E Ex2/22*IT6000ET
-ATEX approval for
Ex zones 2 and 22
-

*For ATEX zones 1/21 we offer the weighing terminals IT8000Ex and IT3000Ex.
