IT2000M weighing & batching module

IT2000M is designed for weighing and batching tasks in automated systems, e.g. as:

  • W&M approved filling controller, MID compliant, for filling of liquid or solid material
  • Beltweigher controller for shipping and receiving of bulk material
  • Process weighing terminal for the capturing and/or controlling the throughput of continuous weighers
  • Batchweighing terminal for automatic filling in a multi-material batching operation, with connection to host or SCADA system
  • Universal, W&M approved, remotely controlled fieldbus terminal with weighing and batching functions, with integrated weight storage (data archive)

Weight value and status information of the scale are continuously transmitted via PROFINET, PROFIBUS DP or Ethernet/IP to the connected PLC or control system. The powerful ARM processor system processes up to 800 weight readings per second. Via up to 14 opto-isolated fast-switching digital inputs/outputs -for example- a complete filling line can be controlled, within permissible weight tolerances, with maximum throughput rate, minimum space requirements and a convincing price/performance ratio.





IT2000M
IT2000M

for weighing and batching tasks in automated systems

for installation on DIN rail
for installation on DIN rail

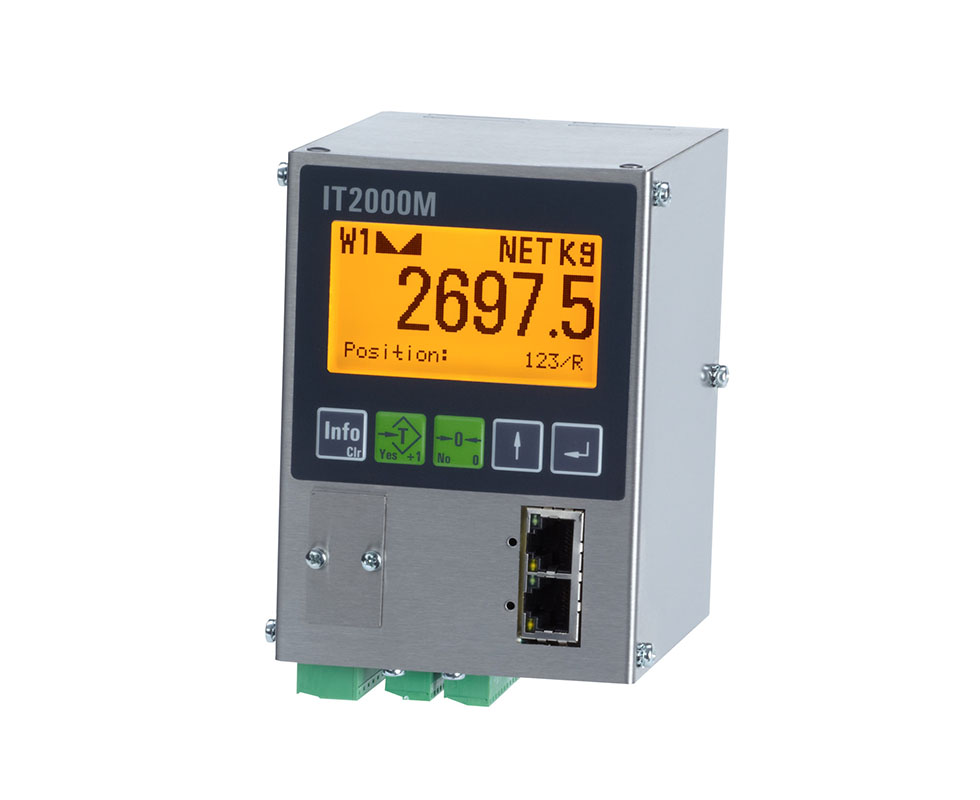

IT2000M weighing module

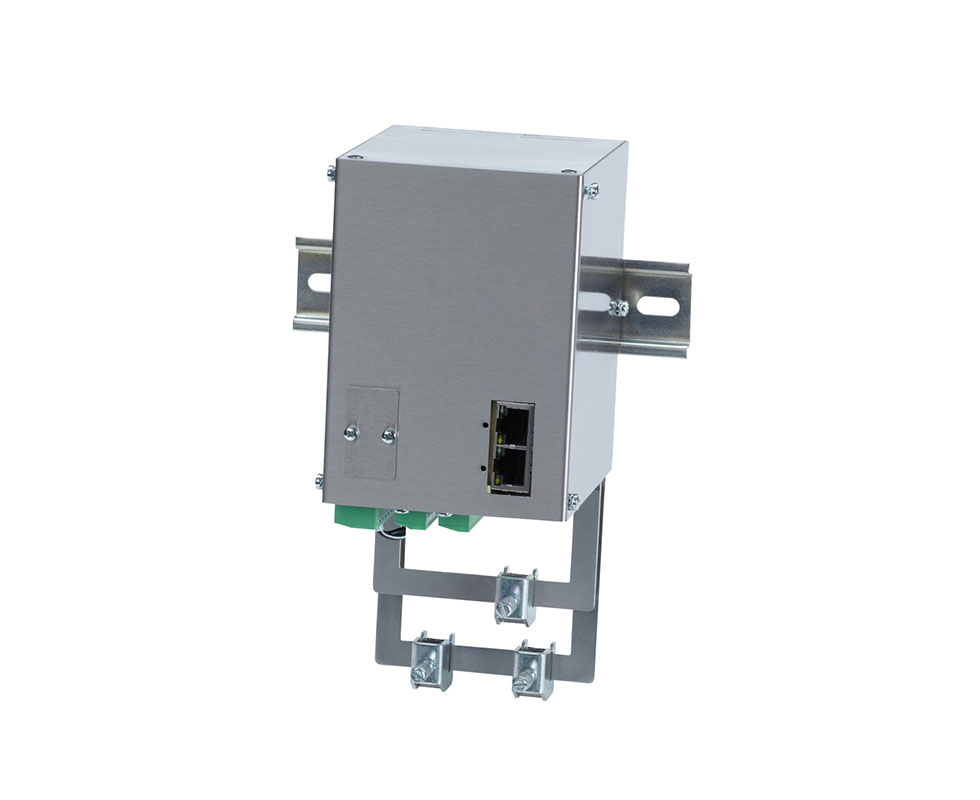

Blackbox: IT2000M
Blackbox: IT2000M
  • High-precision weight readings and batching on all scales with analog strain gauge load cells
  • Wide range of applications: e.g. filling systems, recipe weighing systems, belt scales, process scales
  • W&M approved use as non-automatic and automatic weighing instrument possible (approved in the EU, USA, Canada, and others)
  • Compact stainless steel housing (W x H x D: 92 x 120 x 106 mm), protected to IP20, easy installation on hat rail (DIN rail)
  • Excellent price/performance ratio
  • High operational security: power-failure proof data storage, password protection, battery-backed realtime clock, remote diagnosis via internet possible
  • Integrated factory-normalized measuring amplifier for connection to up to 8 strain gauge load cells (350 Ohm) in a 4- or 6-wire system
  • Resolution 30,000 d, internal resolution 524,000 d, W&M approved resolution 10,000 d at max. 80 % preload, smallest load cell signal 0.33 µV/e, update rate 50–800 filtered measurments/s
  • Calibration as multiple-range or multi-interval scale possible, option for linearization of  weight curve
  • Ethernet TCP/IP and USB interfaces are standard
  • Optional fieldbus interfaces: PROFINET, PROFIBUS DP, Ethernet/IP and Modbus TCP
  • Options for serial and analog interfaces, connection of pulse wheels and extensions for a max. of 64 I/Os available. The display/keyboard unit can be supplied separately for installation in door of switch cabinet. Operation and configuration can be made via display/keyboard or alternatively via password-protected webserver

BAG - bag filling controller



BELT - belt weigher controller



FILL - filling controller for liquids



ONLINE - weighing terminal in the PC network

PROCESS - controller for process scales

CONTROL/ONLINE - remote controlled via field bus, with switching point and batching functions

Directives

IT2000M
2014/30/EU, 2014/31/EU, 2014/32/EU

Standards

IT2000M
EN 61000-6-2, NAMUR NE21, EN 61000-6-4, EN 45501, OIML R 76-1, OIML R 61
CE certified SysTec weight indicators

EC type examination certificate

IT2000M
as NAWI, AGFI
NTEP approval SysTec weight indicators

NTEP type approval

as indicating element
IT2000M
ETL certified: SysTec weight indicators

ETL certified

in compliance with UL 62368-1 and CSA C22.2 No. 62368-1
IT2000M
EMI certified: SysTec weight indicators

EMI

in compliance with FCC part 15
IT2000M
Canada: type approval SysTec weight indicators

Measurement Canada: type approval

as indicating element
IT2000M
Russia: type approval SysTec weight indicators

Russia:

type approval as indicating instrument
IT2000M
