IT5: Compact weighing indicator for panel-mount installation

Compact. Modular. Digital.
The new weighing electronics with touchscreen!

With its compact dimensions*, the new IT5 weighing indicator is designed for panel-mount installation. The new SysTec device is ideal for industrial weighing and control tasks. It convinces with intuitive operator prompting via TFT color touch screen and is also suitable for glove operation.

All connections at the rear of the device are pluggable. The modular concept with 3 internal slots and a wide range of plug-in cards allows a variety of configurations. Thus, the IT5 is a space-saving weighing indicator suitable for various industrial applications.

The IT5 also offers many options in terms of connectivity: In addition to the analog scale connection, Ethernet, USB, digital, serial, analog and fieldbus interfaces are available as options. Control of printers and remote displays is standard.

Another benefit is the fast pulse counting input for the connection of incremental transducers; e.g. for measuring belt speed. In addition, simple PLC functions with digital and analog inputs/outputs are possible.

If the requirements are more specific, customer-specific adaptations can be realized by SysTec (on request). Important for service: Remote maintenance can easily be done via the integrated web server. This saves time and money. Furthermore, the pluggable connections allow quick replacement in the case of a service call.



* Dimensions (please click on the graphic to enlarge)

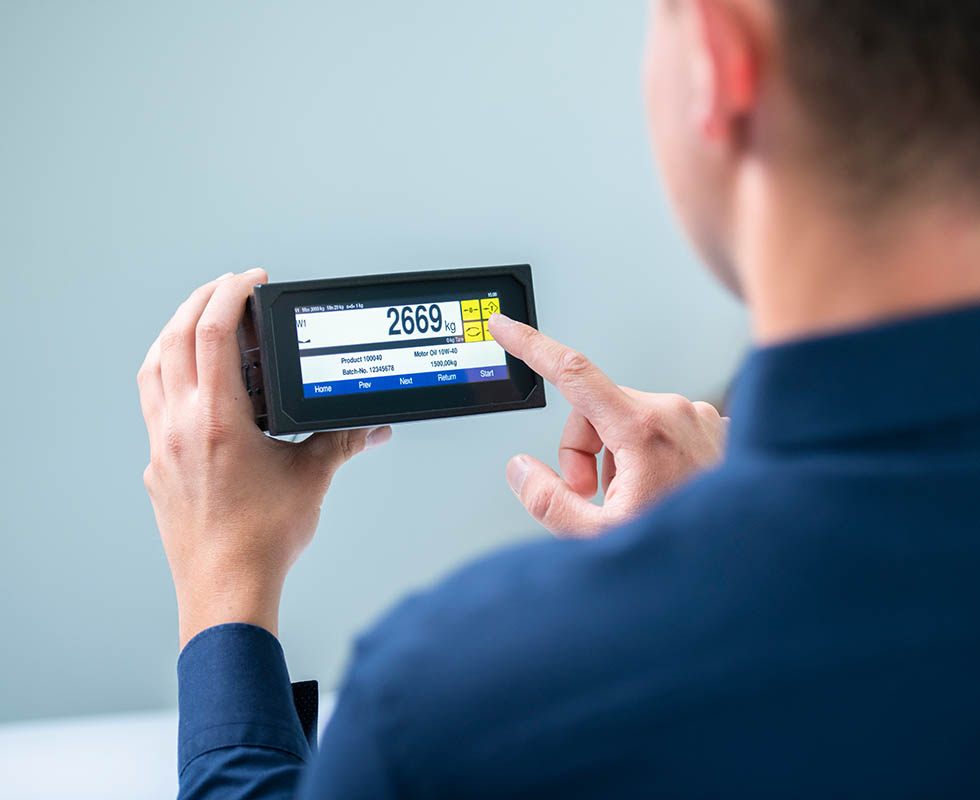

Weighing indicator with touch function
Weighing indicator with touch function

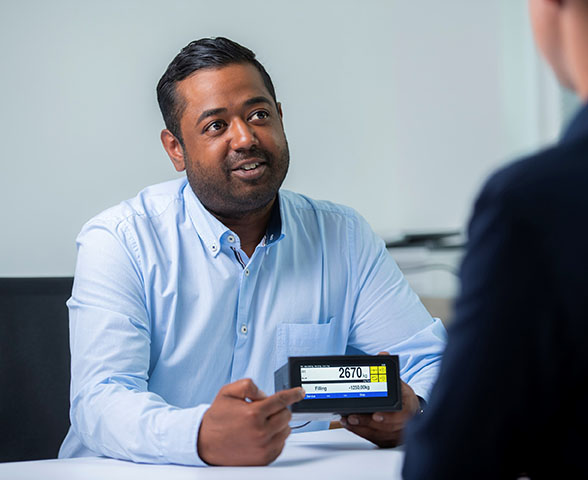

Compact weighing electronics

Compact weighing electronics

Intuitive operation via touchscreen

Intuitive operation via touchscreen

Share: IT5 weighing electronics

Areas of application for IT5:

Weighing and control tasks for industrial weighing applications. e.g. in the context of:

  • Manufacturing and material handling processes in the chemical and pharmaceutical industry as well as a variety of applications in the building materials sector
  • Level monitoring with communication via PROFIBUS / PROFINET
  • Belt scale applications (NAWI; non-automatic weighing instrument)

Software

The following application software is available for the IT5:

  • ONLINE OP:  IT5 ONLINE OP  is a universally applicable weighing indicator with fieldbus interface.
  • CONTROL/ONLINE:  IT5 CONTROL/ONLINE  is an industrial weighing indicator for use as W&M approved remotely controlled weighing terminal. The modular design and the configurability of the system enable a wide range of applications. The weighing indicator IT5 CONTROL/ONLINE  is connected to a process computer via Ethernet. The selectable transfer protocols enable the data exchange with a host system.
  • BELT:  IT5 BELT is a weighing controller for capturing continuously the quantity of bulk material conveyed over a belt weigher (type approval as a legal-for-trade belt scale in preparation).

Type examination certificate

The IT5 has a type examination certificate for EU as NAWI (non-automatic weighing instrument).
