IT1 series weighing indicators

The IT1 is a cost-effective industrial weighing indicator for standard applications. The W&M approved indicator is available as a wall-mount/desk-top unit or as panel-mount version for installation in a switch cabinet.

SysTec also offers a version of the weighing indicator for installation in hazardous area (IT1 Ex2/22).

The powerful modular hardware and the proven standard application programs enable the IT1 weighing indicator to be used for:

  • Floor and bench scales
  • Check scales
  • Hopper scales (setpoint controller)
  • Mobile scales
    IT1 weight indicator
    IT1 weight indicator

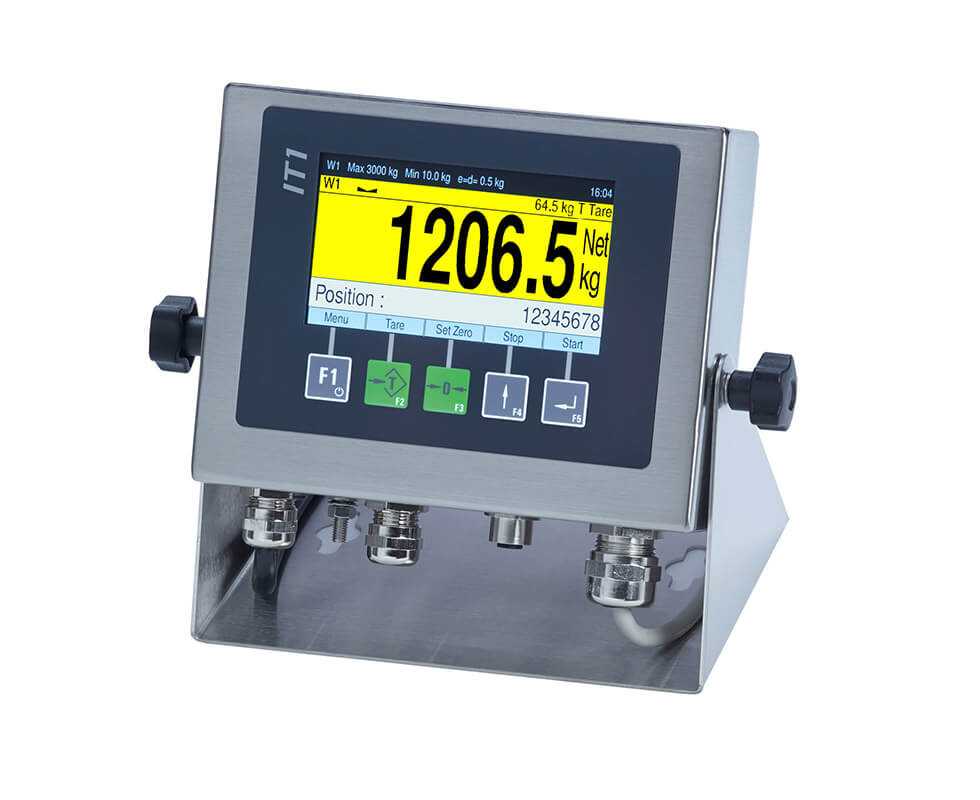

    Weighing terminal / weight indicator as wall/desk version

    IT1 Weighing terminal / weight indicator
    IT1 Weighing terminal / weight indicator

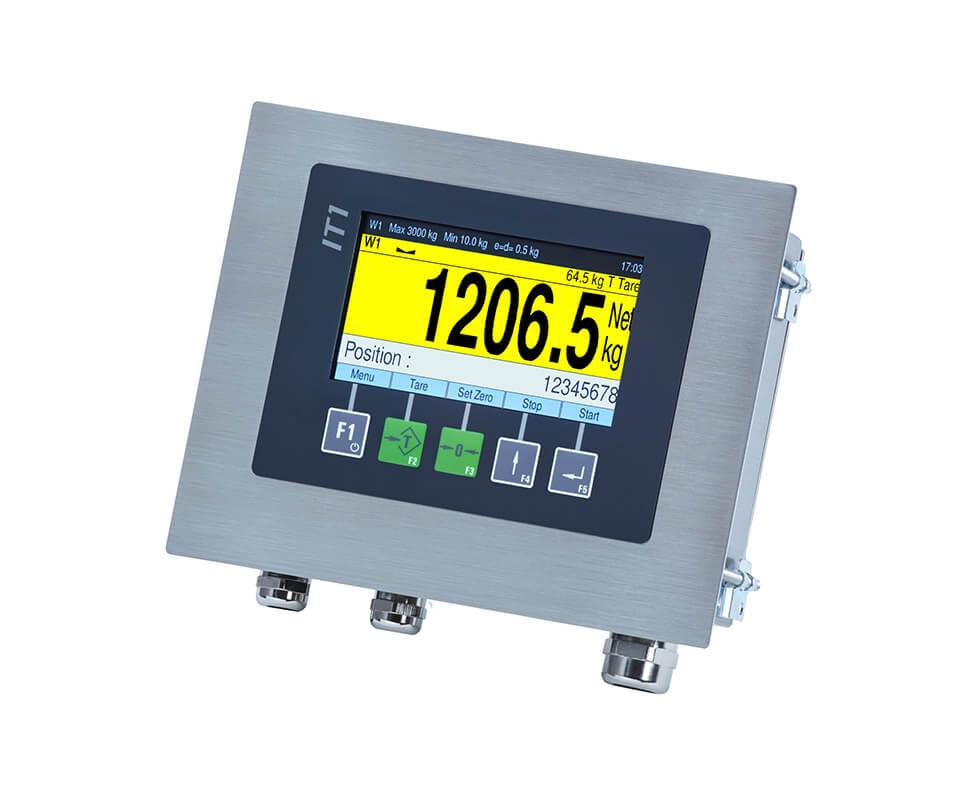

    Weighing terminal / weight indicator as panel-mount version

    • Robust: Stainless steel housing (ingress protection – IT1: IP69K, IT1 Ex2/22: IP 65), all cables inserted into the housing through tight cable glands
    • W&M approved: For worldwide use as non-automatic weighing instrument (approved in the EC, USA, Canada, and other countries)
    • Excellent readability: Bright TFT color display (4.3") with wide viewing angle
    • Various designs: Wall-mount/desk-top or panel-mount versions available
    • Easy integration into PC networks, interfaces for remote displays, printers and other peripheral devices
    • Hazardous area: For installation in hazardous area SysTec offers the IT1 Ex2/22 version
    • IT1 is designed for the connection to one scale with analog or digital force transducer. The max. W&M approved resolution is 10,000 d
    • Use as multiple-range scale (e.g. 3 x 3000 d) is possible
    • W&M approved long-term weight storage (data archive with a max. of 1 million entries available as option)
    • Option: External scale interface via ADC box and RS485 interface with a max. cable length of 500 m

    BASIC - weighing with floor or bench scales



    COUNT - parts counting scales for production or warehousing



    CHECK - for check scales



    ONLINE - weighing terminal in the PC network

    Directives

    IT1IT1 Ex2/22
    2014/30/EU2014/30/EU
    2014/31/EU2014/31/EU
    2014/35/EU2014/32/EU
    -2014/34/EU
    -2014/35/EU

    Standards

    IT1IT1 Ex2/22
    EN 45501EN 45501
    OIML R 76-1OIML R 76-1
    EN 61000-6-2EN 61000-6-2
    EN 61000-6-3EN 61000-6-3
    NAMUR NE21NAMUR NE21
    EN 62368-1EN 62368-1
    WELMEC 8.8WELMEC 8.8
    -60079-0/-7/-11/-31
    CE certified SysTec weight indicators

    EC type examination certificate

    IT1IT1 Ex2/22
    as NAWIas NAWI
    NTEP type approval SysTec weight indicators

    NTEP type approval as indicating element

    IT1IT1 Ex2/22
    -
    ETL certified SysTec weight indicators

    ETL certified

    in compliance with UL 62368-1 and CSA C22.2 No. 62368-1
    IT1IT1 Ex2/22
    -
    EMI:SysTec weight indicators

    EMI

    in compliance with FCC part 15
    IT1IT1 Ex2/22
    -

    Russia:

    Type approval as indicating element
    IT1
    Canada measurement type approval SysTec weight indicators

    Measurement Canada: type approval

    as indicating element
    IT1IT1 Ex2/22
    -
    ATEX approal SysTec weight indicators
    IT1IT1 Ex2/22
    -ATEX approval for Ex zones 2 and 22
