Weighing Terminals for Scales and Systems

Welcome at SysTec - Your partner for industrial weighing systems

SysTec develops and manufactures W&M approved weighing terminals and filling controllers for static and dynamic scales.

Standard solutions are available for simple applications, and freely programmable weighing terminals are employed for more complex, custom-specific requirements. The outstanding connectivity of SysTec weighing terminals in fieldbus and PC networks is based on a variety of interface modules and pertaining software.

Innovative and efficient weighing systems are developed together with our worldwide sales and service partners for truck scales, filling of liquid or bulk material, shipping / receiving scales, checkweighers, parts counting systems, mobile weighing and much more.

Hardware and software, exclusively developed and manufactured in Germany, are the result of high quality standards and innovative competency and make SysTec a market leader for industrial weighing technology.

ISO 9001:2008

product updates

IT3

W&M Approved Industrial Weighing Terminal IT3

IT3 weighing terminal is the successor of the IT3000, the weighing terminal that has been very successful for more than ten years. Just as its predecessor, IT3 provides a variety of preinstalled standard applications, which make it the right choice not only for weighing and data capturing, but also for one- or two-speed filling with tare check and preact optimization, checkweighing and truck scale installations.

The 5" (127 mm) high-contrast, high-resolution color display provides a weight display with a height of 32 mm, clearly readable from a distance, and an additional display line for messages or operator prompts and entries. Together with keys for taring and zero setting, IT3 features 5 softkeys whose program-dependent functions are indicated on the display. A numeric keypad is available for convenient entry of tare weights and values, it also permits the entry of texts.

IT3 provides connection to one or two analog scale bases with a W&M approved resolution of up to 10,000 increments. As an alternative, also digital force transducers can be connected, e.g. for use in a truck scale installation. The optional W&M approved weight memory (data archive) has a storage capacity for 1 million weighings and guarantees the traceability also to transactions made at a much earlier point in time. IT3 has EC approval as a non-automatic weighing instrument, approvals in the US and Russia are pending.

For the connection of peripheral devices IT3 can be configured with up to two serial RS232 or RS485 interfaces. Alternatively, connection to a PC can also be established over Ethernet. A line or label printer can be connected via serial interface, Ethernet, USB or Bluetooth. Print formats can easily be edited and adapted to specific requirements at the weighing terminal or conveniently via a PC program.

For simple filling or setpoint applications IT3 can be fitted with two digital inputs and two digital outputs. Alternatively, also an analog output 4–20 mA or 0–10 V is available. For the connection to external PLCs or SCADA systems, IT3 can be equipped with a fieldbus module. Apart from Profibus DP, also interfaces for Profinet, Ethernet/IP or Modbus TCP can be installed.

IT3 fits seamlessly into the SysTec product range of industrial weighing terminals. It is available as wall-mount / desk-top version protected to IP65/IP69K and also as panel-mount version. Power supply can either be made via 110–240 VAC or 12–24 VDC. Also a version for supply through an external rechargeable battery is available, which makes IT3 the perfect unit for mobile applications. Versions for use in Ex zones 2 and 22 are in preparation.
  • IT3
  • IT3

    IT1

    W&M Approved Industrial Weighing Terminal IT1

    IT1 is the first product launch as part of a new generation of SysTec weighing terminals.

    The W&M approved weighing terminal is designed for industrial use in harsh environment for weighing, filling and checkweighing.
    The modular electronics with a multitude of interfaces (analog, serial, digital, Ethernet,…) is incorporated in a robust stainless steel housing protected to IP69K.

    The color display is very well legible, makes operation easy and indicates limit violations with a color change.
    The optional internal data archive can be used for online connections to PC systems.

    Service is made easy via remote access and an internal web browser, in the local net or over Internet, protected with the appropriate security mechanisms.
  • IT1
  • IT1

    IT2000M

    W&M Approved Industrial Weighing Terminal IT2000M

    The IT2000M weighing module is intended for precise weight measurements with all types of scales using strain gauge loadcells (eg silo, hopper or platform scales).

    Weight and status information is continuously transmitted to the connected PLC or process control system via ProfiNet, Profibus DP or Ethernet/IP.

    IT2000M features integrated batching functionality with material flow and tolerance check and can be started and controlled over fieldbus.

    The integrated display and keyboard provide check of weight as well as scale calibration on site without auxiliary means.
    Setup time is reduced by simple installation on DIN rail, connection of cables with pluggable screw terminals and cleartext prompts for the calibration with or without test weights.
    IT2000M

    IT8000ET

    W&M Approved Industrial Weighing Terminal IT8000ET
    The W&M approved IT8000ET is designed for demanding industrial applications in the chemical and pharmaceutical industry, in the food industry and in many other sectors of industry. The industrial design with the powerful modular hardware and the concept of free programmability make the IT8000ET the ideal weighing terminal for standard or application-specific solutions, eg for:
  • Filling and batching systems,
  • Mobile data capture systems,
  • Vehicle weighing,
  • Checkweighing,
  • Dynamic weighing and batching systems,
  • Mobile data capture systems.
  • Freely programmable touch panel operation ensure simple, error free and fast operation.

    Simple integration
    The Linux based operating system with the integrated web server provides the ideal functionality for the integration of the IT8000ET into local area networks.
    WiFi communication and remote access via internet are also possible.
    IT8000ET

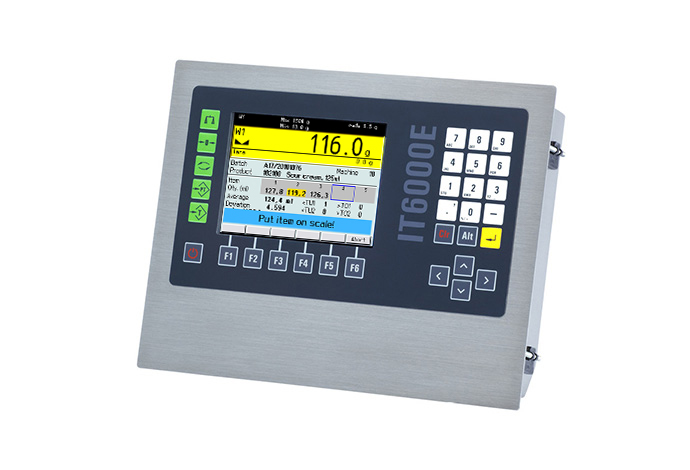

    IT6000ET

    W&M Approved Industrial Weighing Terminal IT6000ET
    The W&M approved IT6000ET is designed for applications in the chemical and pharmaceutical industry, in the food industry and in many other sectors of industry.
    The industrial design with the modular hardware and the powerful standard programs make the IT6000ET the ideal choice for:
  • Filling of liquid and solid material
  • Vehicle weighing
  • Check weighing
  • Dynamic weighing and batching systems
  • data capture systems.

  • Freely programmable touch panel operation ensure simple, error free and fast operation.

    Simple integration
    The Linux based operating system with the integrated web server provides the ideal functionality for the integration of the IT6000ET into local area networks. WiFi communication and remote access via Internet are also possible.
    IT6000ET
